Huixia Metalworking provide machining services only the finest quality machined products. With a rigorous quality control systems, we ensure that each metal parts and plastic parts leave our facility will meet the most demanding specifications. From raw materials to finished parts, strictly control every step of the inspection flows. We make quality a priority here at machining services.

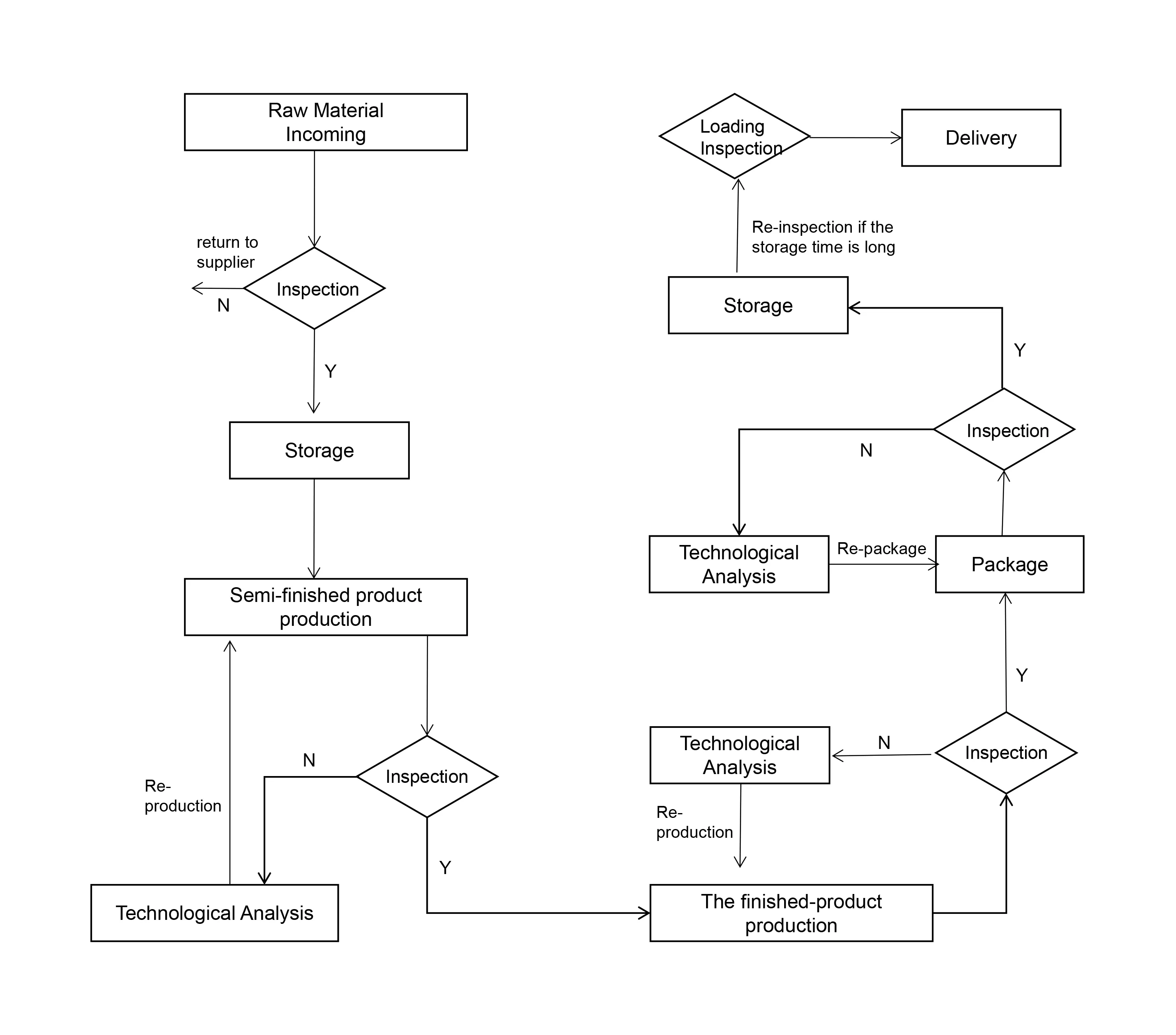

QUALITY CONTROL FLOW

MAIN INSPECTION EQUIPMENT

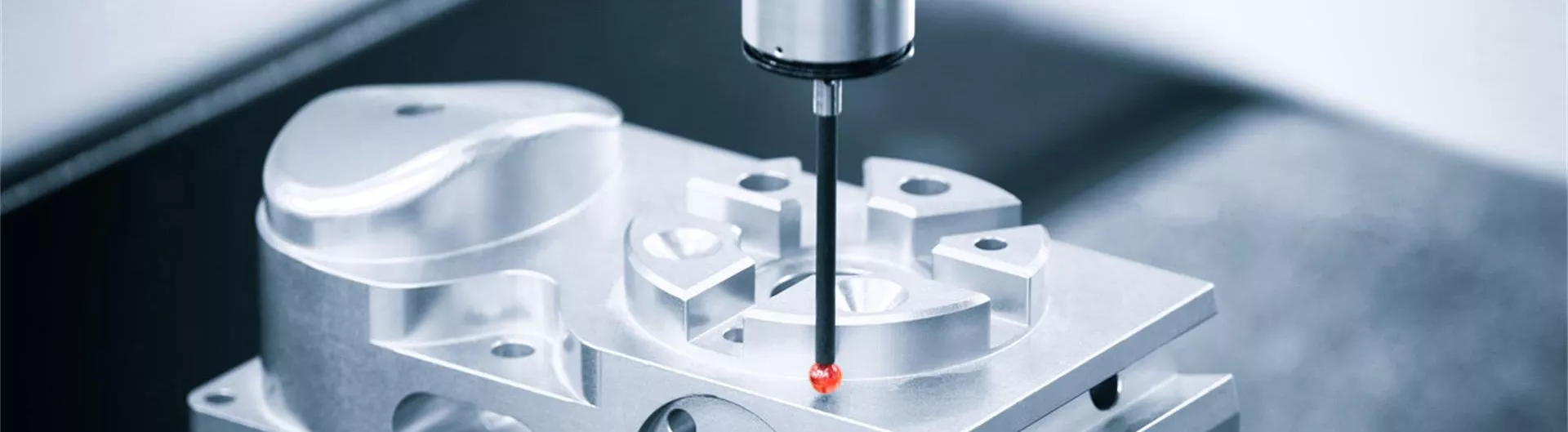

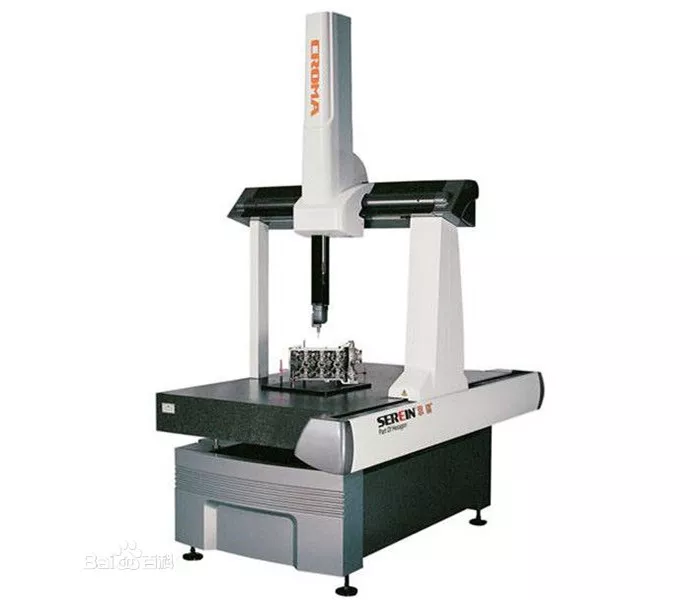

Coordinate Measuring Machine

The Coordinate Measuring Machine, abbreviated CMM, It refers to an instrument that can calculate various geometric shapes, sizes and other measurement capabilities through a three-coordinate software system based on the point data returned by the probe system in a three-dimensional measurable spatial range.

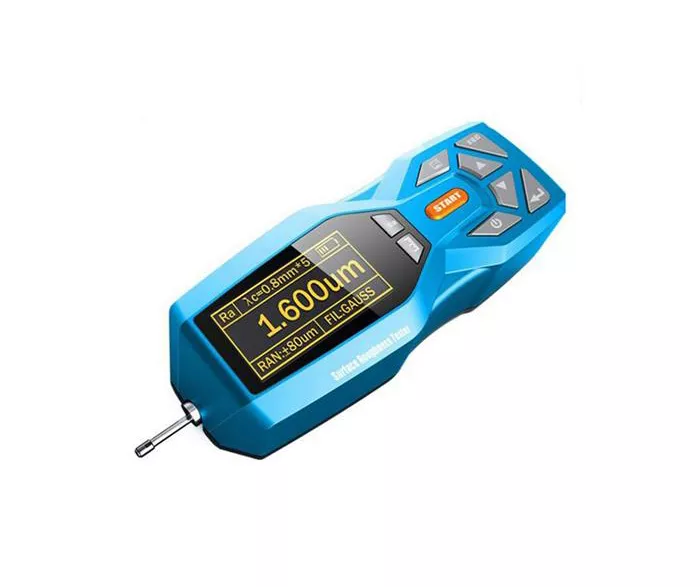

Surface Roughness Tester

Surface roughness tester is also called surface roughness meter, roughness meter or roughness tester. It has the characteristics of high measurement accuracy, wide measurement range, easy operation, easy portability and stable operation. It can be widely used. The detection of various metal and non-metal processing surfaces, the instrument is a pocket-sized instrument integrated with the sensor host, with hand-held features, more suitable for use in the production site.

Digital Caliper

A gauge for measuring length, inner and outer diameter, and depth. Digital calipers with intuitive reading, easy to use, and versatile features.

Inside Micrometer and External Micrometer

The micrometer is a tool that measures the length more precisely than the vernier caliper. The accuracy is 0.01mm, 0.02mm, 0.05mm, plus the estimated 1 digit, which can be read to the 3rd digit after the decimal point (thousands). The inside diameter micrometer is used for precise measurement of the inner diameter of the object, and the outer diameter micrometer is used for precise measurement of the outer diameter of the object.

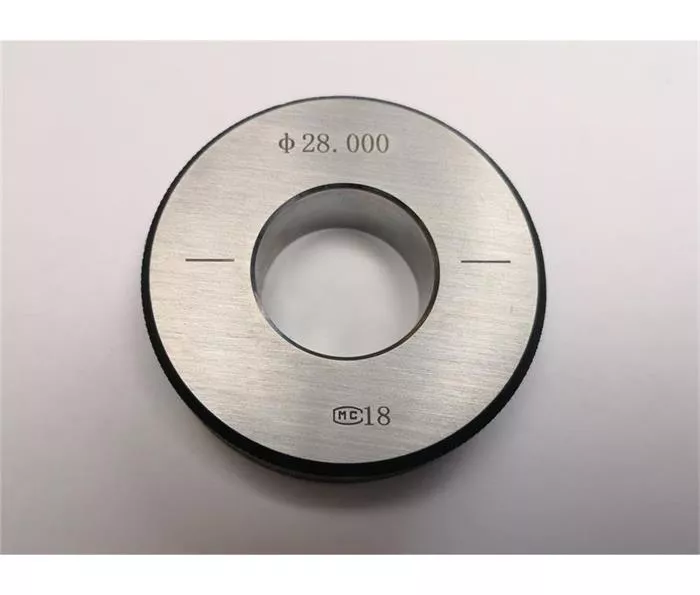

Ring Gauge

The ring gauge, also called the correction ring gauge, is a ring of a specific size and attribute for correcting the shortage of the gauge. The ring gauge is the limit gauge for the shaft. It is mainly used to measure the shaft or other external dimensions of the tolerance class from 1T6 to 1T16. It is not possible to inspect the parts and crankshafts that are machined on the top.

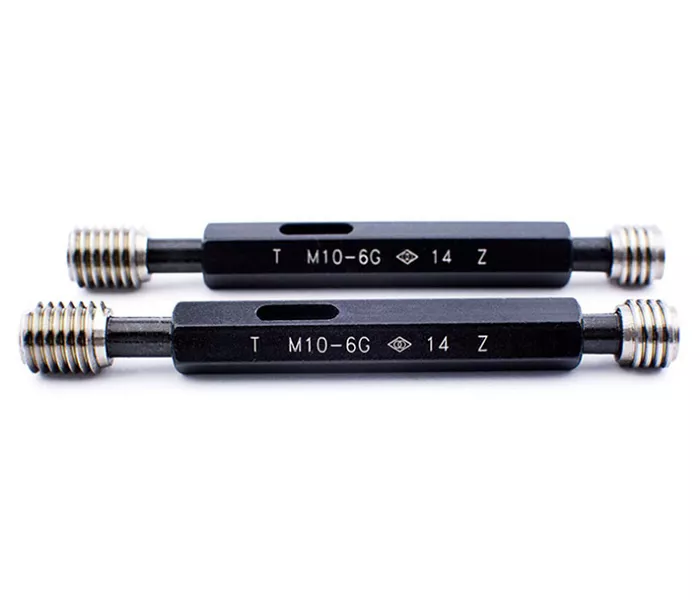

Thread Plug Gage

Threaded plug gauges are tools for measuring the correctness of internal thread sizes. This type of plug gauge can be divided into three types: ordinary coarse teeth, fine teeth and pipe threads. Threaded plug gauges with a pitch of 0.35 mm or less, Class 2 accuracy and higher than Class 2 accuracy, and Grade 3 precision threaded plug gauges with a pitch of 0.8 mm or less have no end probes. Threaded plug gauges up to 100 mm are taper shank thread plug gauges. More than 100 mm is a double-handle thread plug gauge.

Dial Indicators

The dial indicator is a table type universal length measuring tool made by a precision rack and pinion mechanism. Usually consists of a probe, a measuring rod, a shock spring, a rack, a gear, a hairspring, a round dial and a pointer. Mainly used to measure the size and shape of parts, position error and so on. The graduation value is 0.01mm, and the measurement range is 0-3, 0-5, 0-10mm.

Besides the inspection equipment above, there are also other testing tools such as feeler gauge, radius gauge,bevel protractor, depth micrometer and so on, to ensure the accuracy of all sizes, angles, tolerance,roughness,etc.

Huixia Metalworking focus on making every great quality parts!

Welcome to visit us to see more inspection facilities and the quality control system.
